Piling hammer – Poqutec PBV50 Hydraulic Hammer. Top Hammer – Doofor DF530S Rock Drill. Other options are available on request.

Construction & Geotechnical

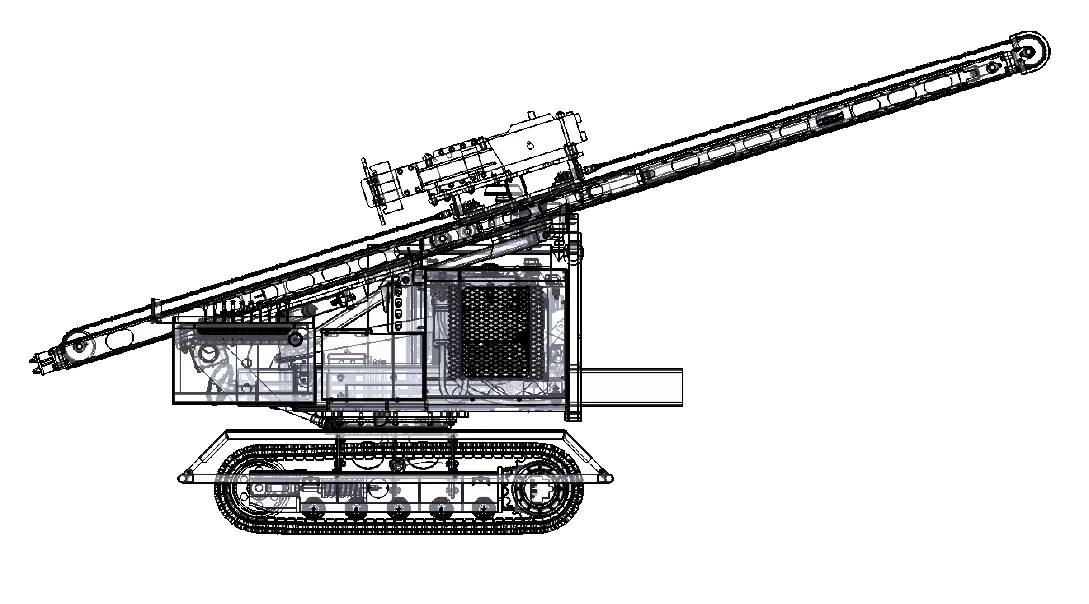

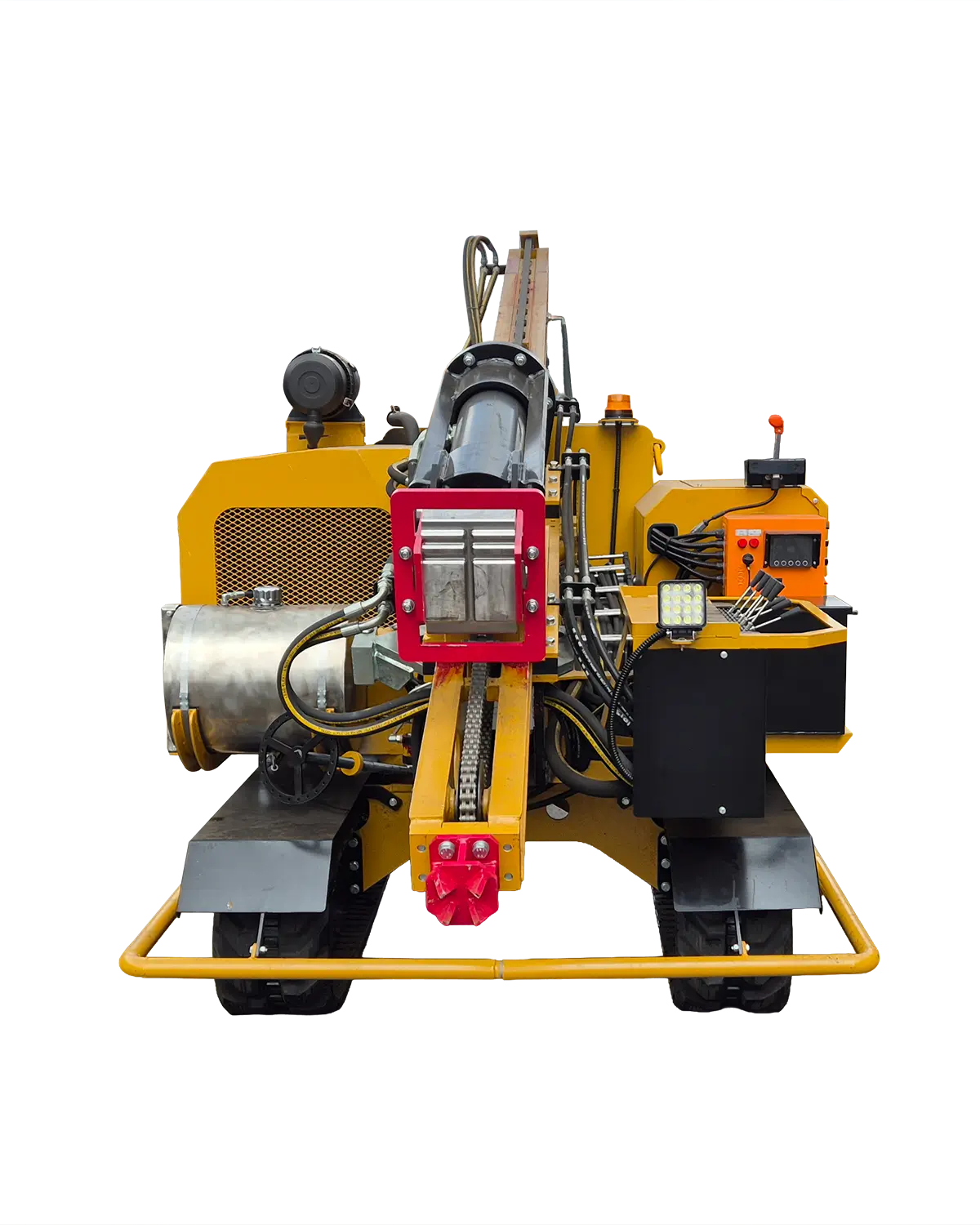

Impi Micro Piling & Drilling Rig

FEATURES

Multipurpose – Ramming & drill rig.
Versatile – Machine can be simply adapted in a short time to any required application, purpose specific equipment development with unbeatable turnaround time.
Robust – Built and designed to handle the most unforgiving conditions.
User Friendly – Designed with customer in mind, quick to service, easy to maintain, quick to replace parts and technology that is reliable and easy to understand.
Affordability – Wear parts designed to be robust, available and are not influenced by R.O.E.’s and high import freight charges.
Local – Manufactured and fully supported by a proudly South African team.
Support – The team behind the machine will support you with recognized technical and operator training to keep your machine performing optimally.

CMP4-3200

SPECIFICATIONS

Physical Dimensions
Transport Height	2,440 mm
Width	2,035 mm
Transport Length	5,420 mm
Weight	3,850 kg (ref.)
Min Ground Clearance	350 mm
Piling & Drilling
Max Post/Drill String Length	4,000 mm \| 4,700mm*
Max Working Distance From Edge	1,900 mm
Max Drill Feed	3,200 mm
Max Feed Force (Down)	17,65kN
Max Feed Force (Up)	32,75kN

Diesel Power	Water Cooled	Air Cooled
Diesel Engine	HATZ 3H50TI SP	KIRLOSKAR HA 494
Emissions Tier	Tier 4	Tier 2
Power	42kW	Air 44kW
Diesel Tank Capacity	60 Litre
Hydraulics
Max Hydraulic Oil Flow	100 lpm
Max Hydraulic Oil Pressure	190 Bar
Max Oil Reservoir Capacity	18 Litre
Electrics
Control Voltage	12 VDC
Pneumatics
Compressor*	30 CFM @ 8 Bar

OPTIONAL ATTACHMENTS

Piling hammer – Poqutec PBV50 Hydraulic Hammer.
Top Hammer – Doofor DF530S Rock Drill.
Other options are available on request.

APPLICATION

Road Works – Armco barrier posts, sign posts – no digging or concrete.
Limited access drilling – Modular design can be stripped, moved and assembled in short time.
Agriculture – vineyard posts, fence posts.
Solar – Post ramming, drill post holes and drill postholes through hard rock.
Top hammer drilling
