Face Drills

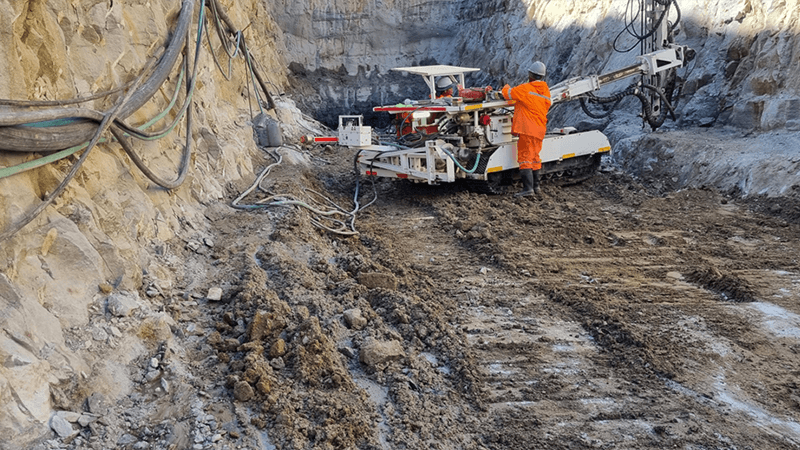

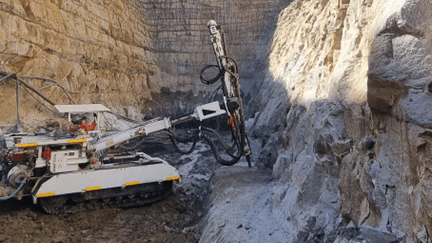

CMR7 Mantis Face Drill

FEATURES

Excellent stability & maneuverability (track driven, skid steer)
Narrow gauge for easy access to tight areas
Walk behind tramming control with deadman selector valve
Optional Remote Control – wireless with umbilical back up
360 degree drill mast rotation
Doofor DF530S high efficiency rock drill
Robust, easy to operate and maintain
Optional rotation drill head (S3 rotation unit)

CMR7

SPECIFICATIONS

Transport Height	1,350 mm
Width	1,995 mm
Length	5900 mm
Length – Tramming Boom Extended	7200 mm
Minimum Ground Clearance	255 mm
Weight	6,150 kg – 7,000kg
Stability (incline & cross grade)	12.5 degrees
Max tramming speed	1.5 kph
Flameproofing (optional)	Ex d 1, Zone 1, 150°c
Electric Motor	30 kW, 525/1000 VAC
Diesel Engine	45 kW
Hydraulic System Max Pressure Max Flow Tank Capacity	210 Bar 130 lpm 300 lt

Drill Mast	CFF 240 Feedframe
Feedframe Length	3,132 mm
Max Horizontal Height	3,900 mm
Min Horizontal Height	120 mm
Max Drill Travel	2,200 mm
Max Feed Thust	450 kg.f
Hydraulic Drifter	Doofor DF530S
Power	10 kW
Max Torque	175 Nm
Max Speed	250 rpm
Chuck Size	R32
Max Water/Air Pressure (flushing)	8 Bar
