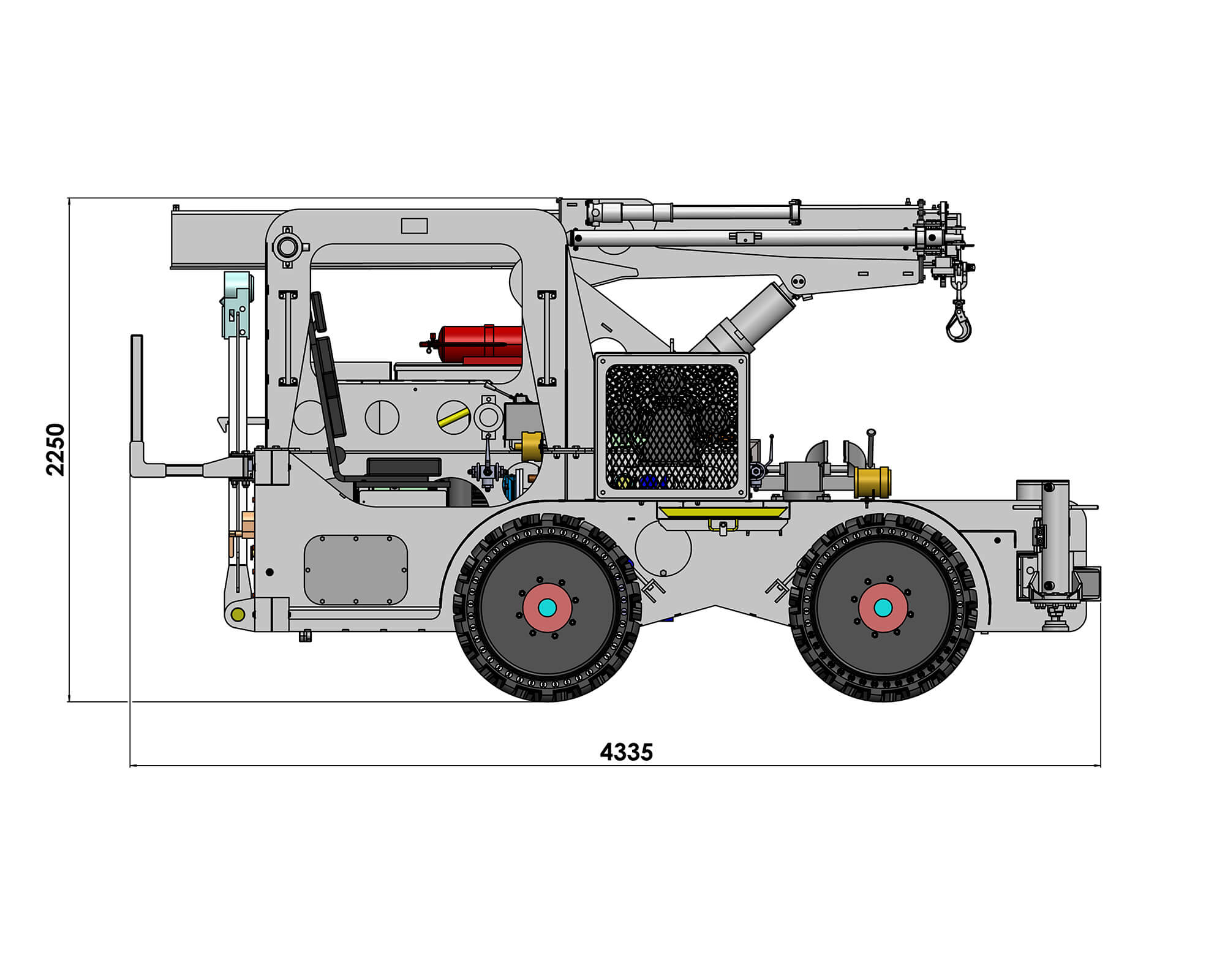

Physical Dimensions |
|
|
Transport Height |
2,232 mm |
|

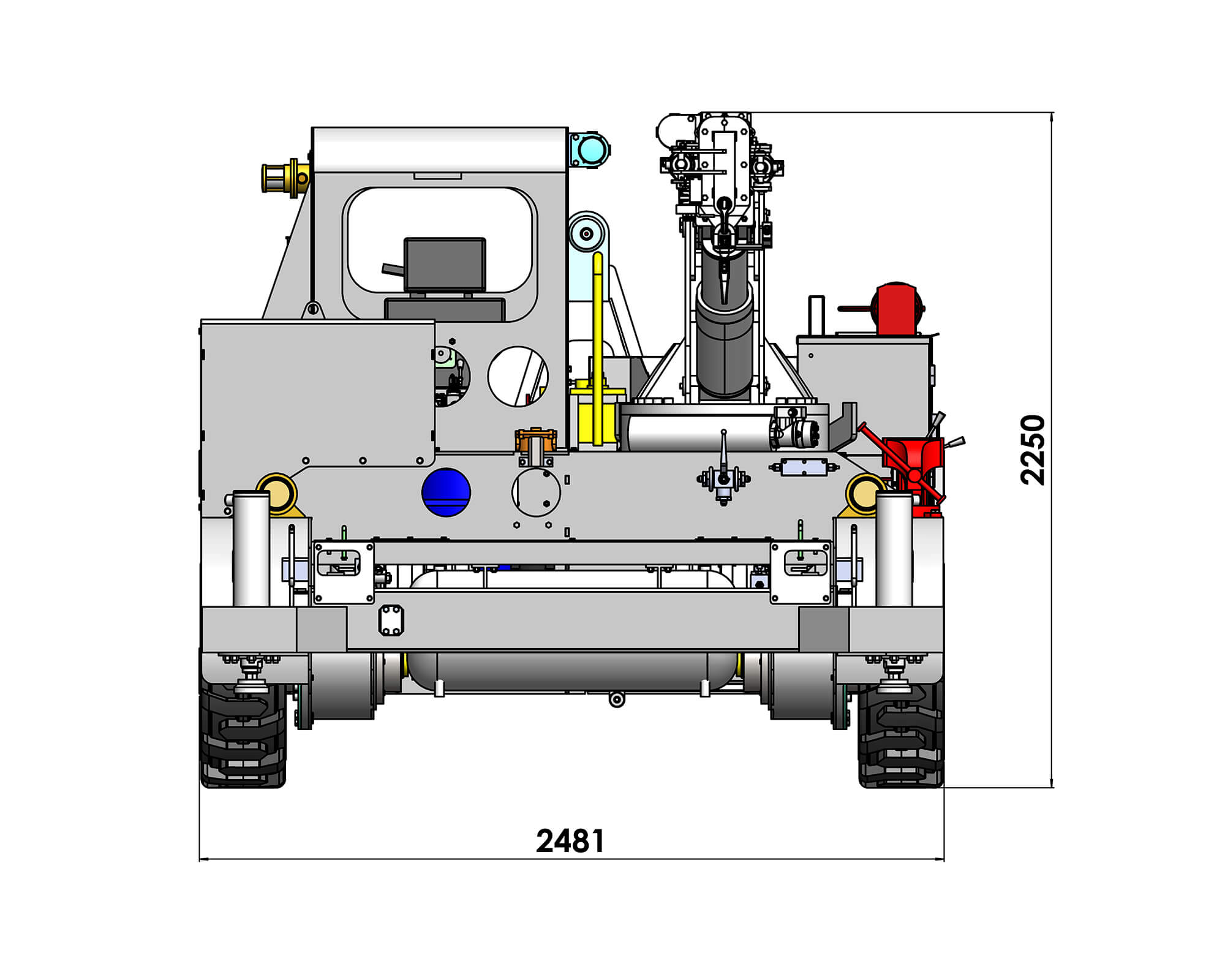

Width |
2,478 mm |
|
Transport Length |
3,912 mm |
|
Weight |
7,000 kg (REF) |
|
Min Ground Clearance |
301/183 mm |
|
Crane Dimensions |
|
|
Crane |
10.5 t/m crane |
|
Loading Deck |
1,431 mm (l) x 1,740 mm (w) |
|
Max Crane Angle (Slew) |
51° |
|

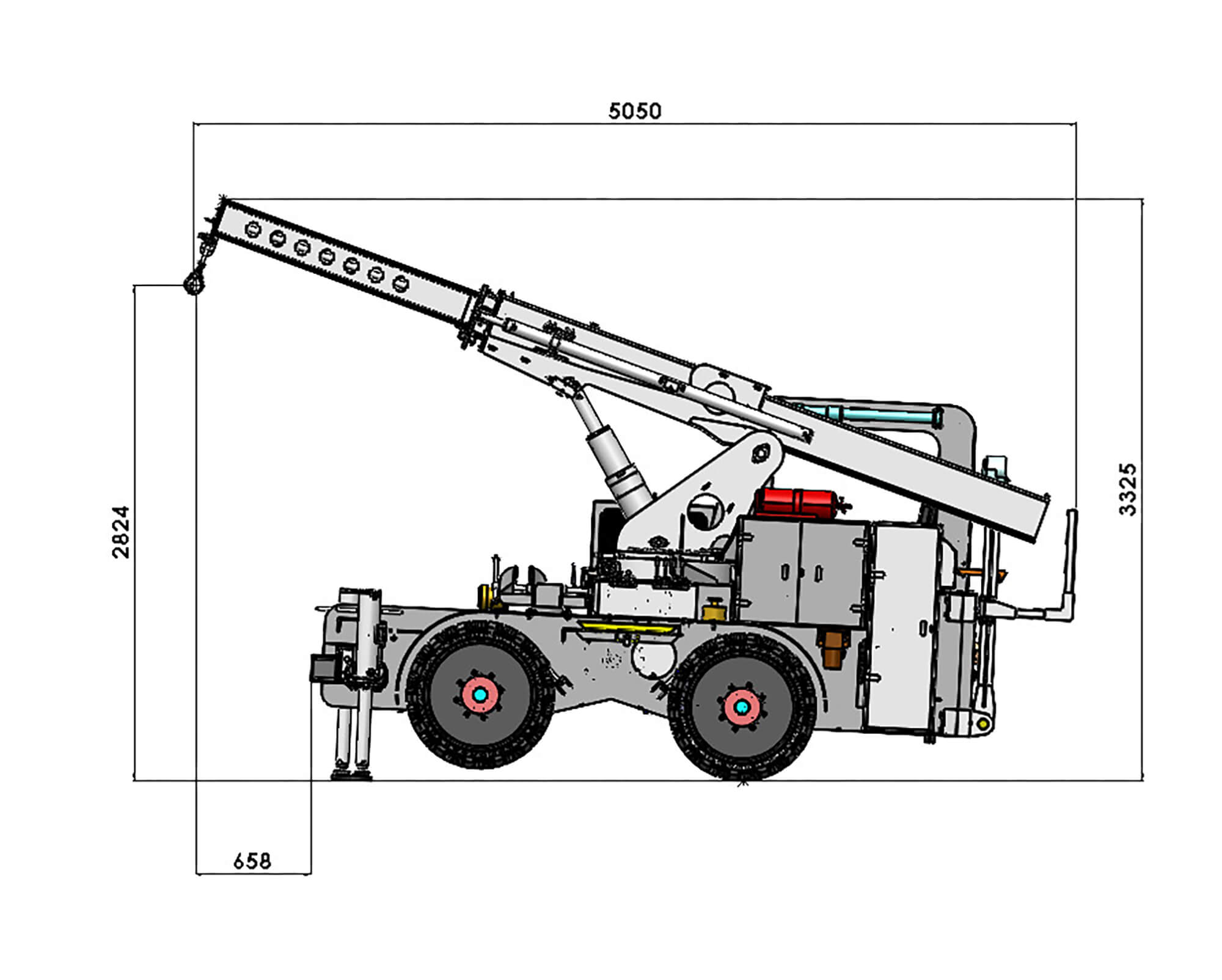

Max Lifting Height |
3040 mm |
|
Max Lifting Capacity |
3 Ton at 1m |
|
1.5 Ton at 2.5m |
|
|
Electric Power |
|
|
Prime Mover |
37kW, 525/1000 VAC |
|
Hydraulics |
|
|
Max Oil Flow |
150 lpm |
|
Max Oil Pressure |
210 Bar |
|
Max Tank Capacity |
275 ltr |
|
Pneumatics |
|
|
Compressor* |
5.5kW, 12 CFM, Reciprocating Piston |
|
Max Operating Pressure |
8 Bar |
|
Air Reciever |
120 Ltr |
|
Safety relief valve Set at 8 Bar |
|
