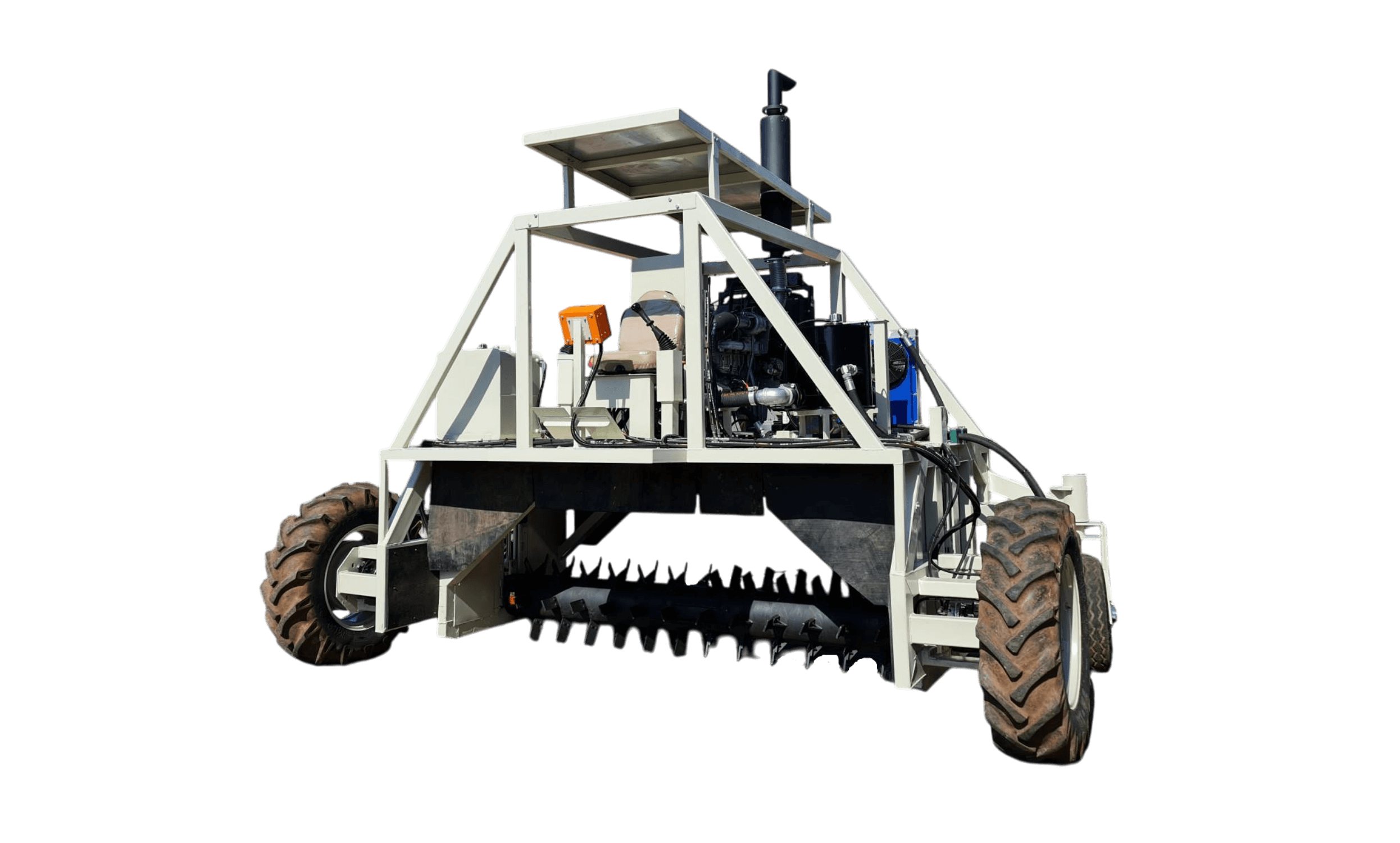

Compost Turner

CM-CT3.5

FEATURES

Robust construction with easy access ladders
Corrosion resistant lining and surface finish
Operator seat with canopy
Wheel drive, skid steer with joystick control
Adjustable drum height
Easy access and simplified maintenance
High and low range speed control
Electronic Management System with failsafe E-stop circuit
High production throughput and thorough mixing

CM-CT3.5

SPECIFICATIONS

Height	3,550 mm
Width	5,300 mm
Length	3,500 mm
Weight (approx.)	5,000 kg
Diesel engine	76kW, Turbo Diesel, Water Cooled
Drum width	3,300 mm
Hydraulic System
Max. Flow Max Pressure System Oil Volume	170 lpm 210 Bar 80 litre

APPLICATION

Aeration of compost; triangular windrow turner
Windrow size (max) 1.2m H x 3.0m W
Production rates of up to 150m² per hour, depending on the material
